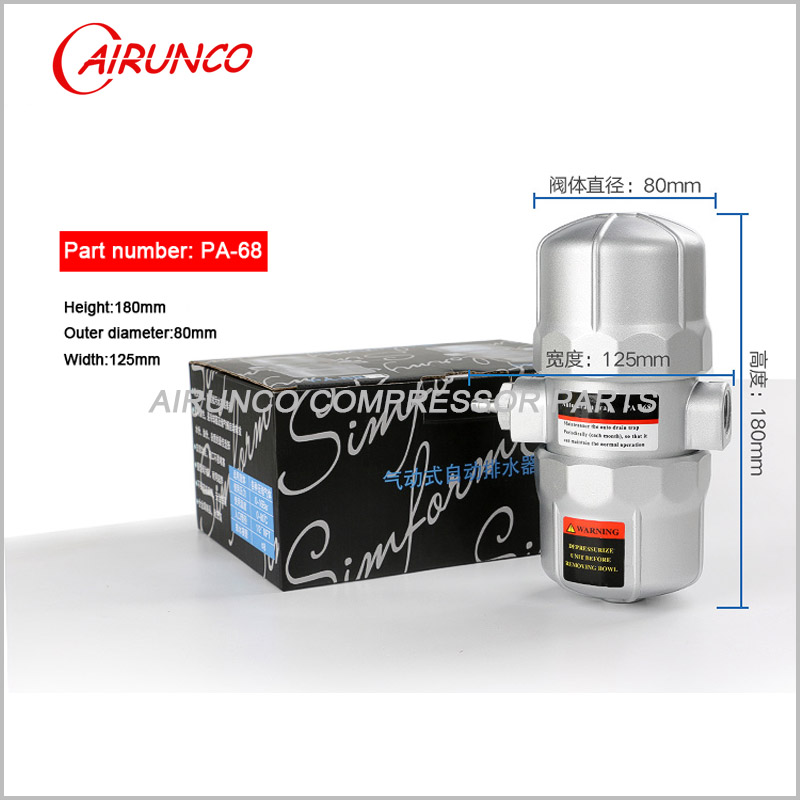

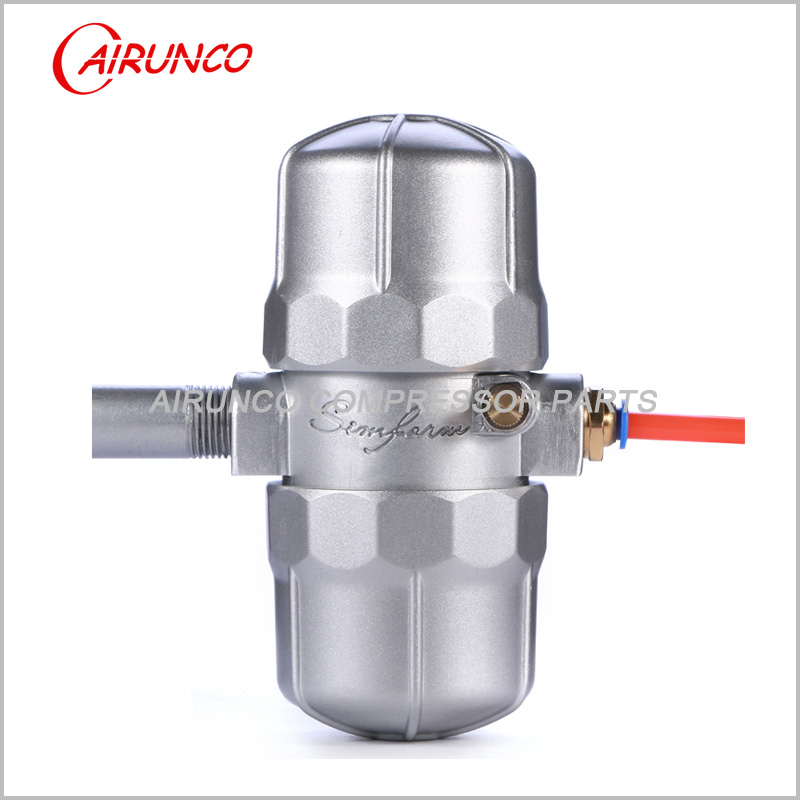

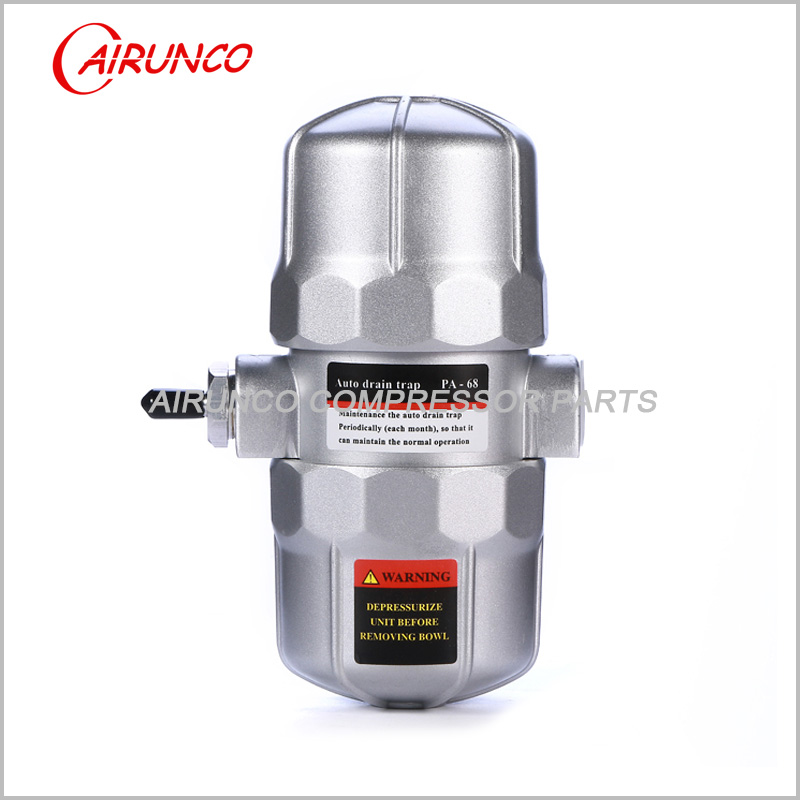

pneumatic auto drain valve PA-68 1/2 apply to air dry
- PRODUCT DETAIL

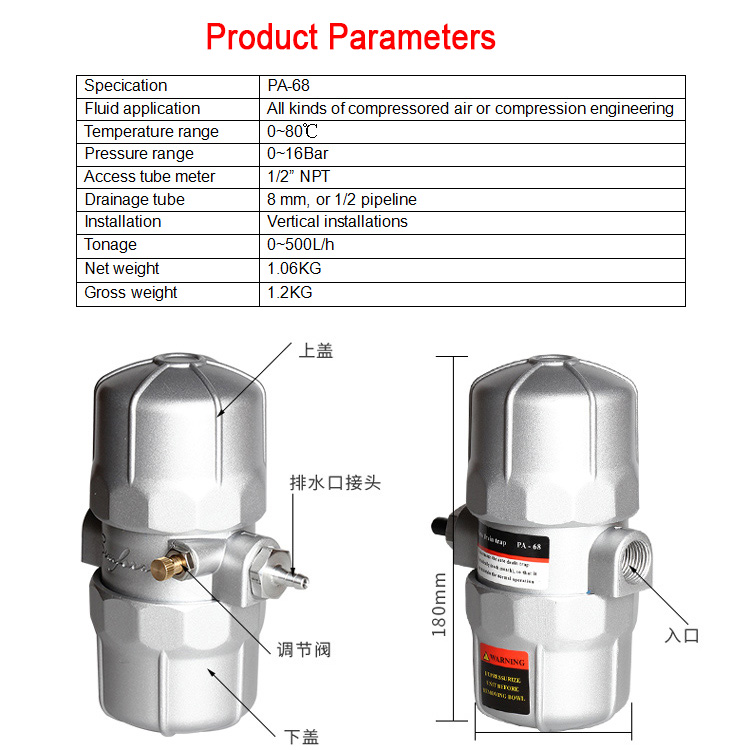

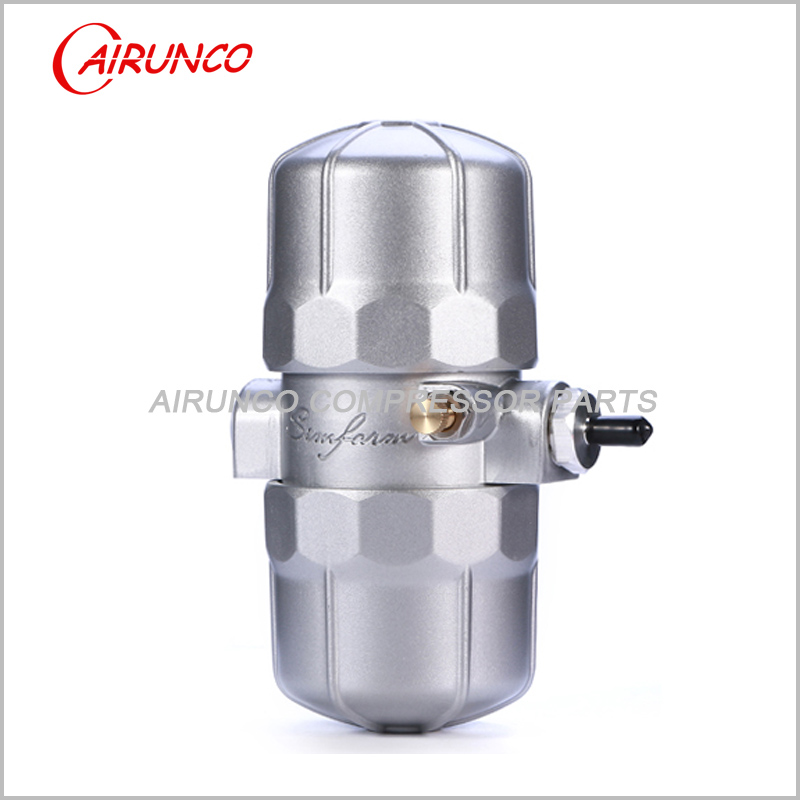

PA-68 type automatic drainer auto drain valve:
1,large flow hole,sewage sludge shape easy eduction.
2,heavy alloy steel valve plates,and durable.
3,fluid:the application of compressed gas.
4,using pressure:2.0 MPa or less.
5,Temperature:2-80℃.
6,Inlet connection:1/2”NPT
7,export takeover:8 trachea ￠8,
easy installation,no need of wiring,high reliability,high security:Not afraid of
Organic solvents,strong self-cleaning function,two filters,vlave port is not easy to jam,ensure smooth drainage;Body adopts the screw tooth type tear open outfit,usual maintenance is very convenient.
Discharge water,the oil in the compressed air system of choice for PA-68.

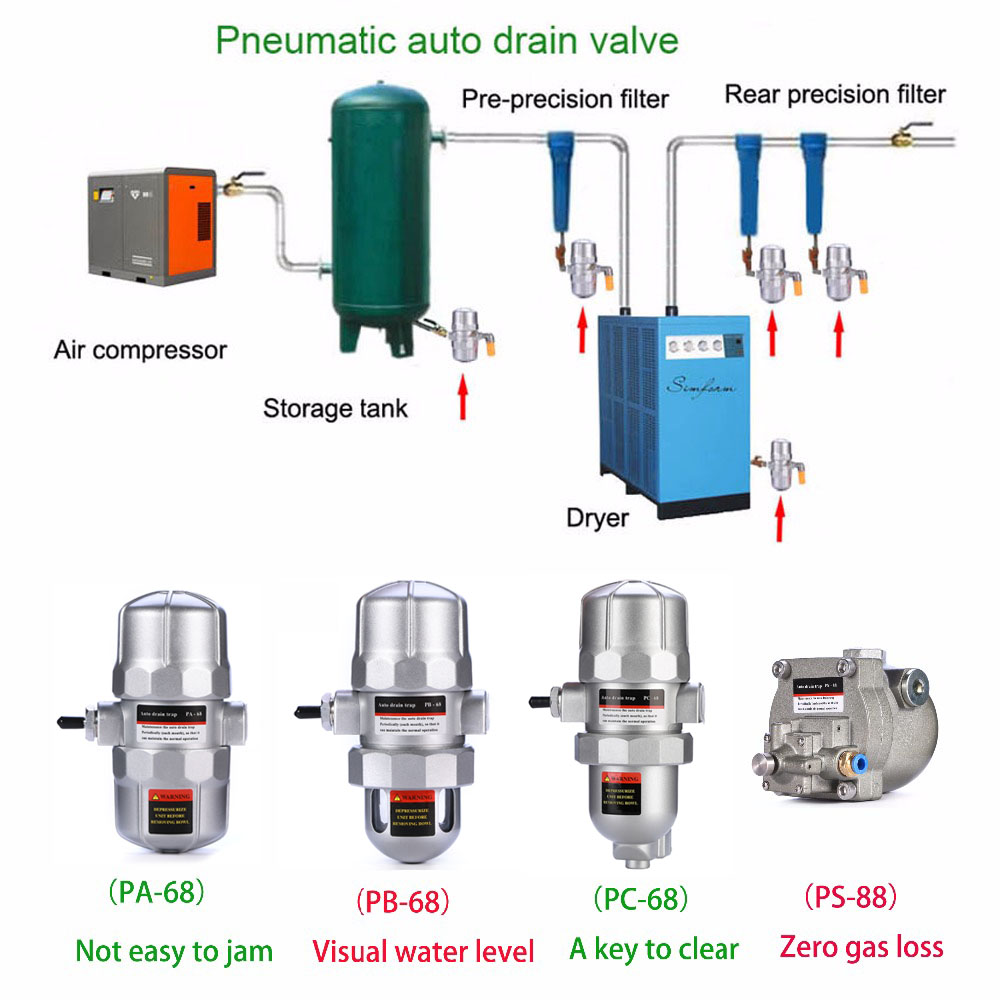

Supply all type auto drain valve:
1,PA-68
PA-68(have sliencer)
2,PB-68
PB-68(have sliencer and visible window)
3,PC-68,(a botton to clean)
4,PS-88,zero air loss,
